Targets: Communication & Wired, Industrial, Medical, Mobile & Wireless, Security

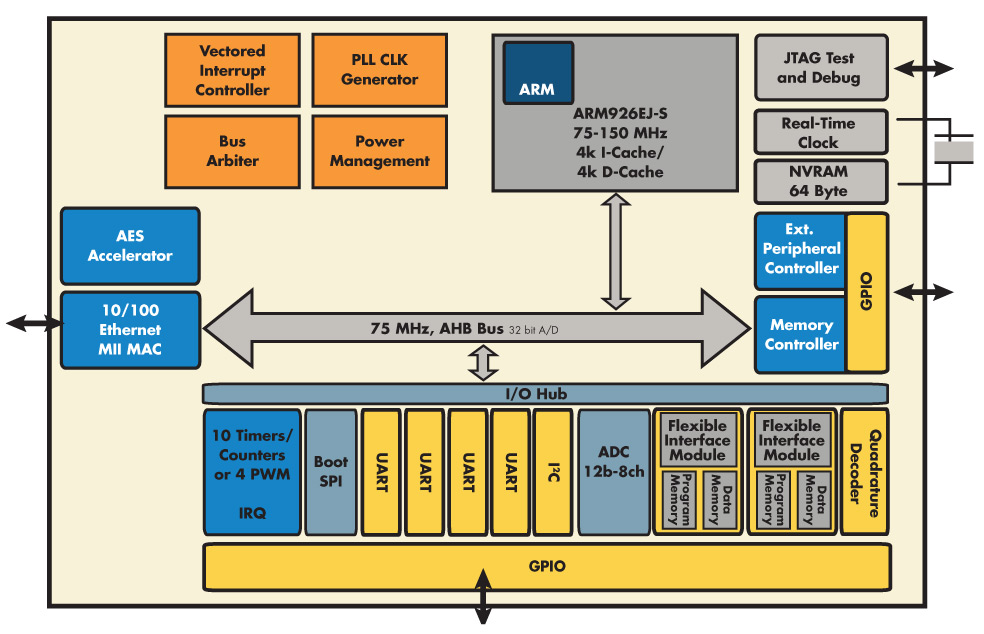

Digi International NS9215/NS9210 Block Diagram

The NS9215 is a high-performance 32-bit network attached microprocessor targeting high-bandwidth applications in Intelligent Networked Devices. Based on the ARM926EJ-S processor core, it offers integrated 10/100Base-T Ethernet MAC, 4 UARTs and SPI and I²C bus support. Unique FIMs (Flexible Interface Modules) provide configurable support, extending the peripherals available. The NS9210 has a reduced feature set and is a pin-compatible upgrade for the NET+ARM NS7520.

NET+ARM processors are the foundation for the NET+OS family of integrated hardware and software solutions for device networking. These platforms include drivers, operating systems, networking software, embedded development tools, APIs, and development boards.
