PowerPC 460GTX

Targets: Communication & Wired, Computers & Peripherals, General Purpose, Imaging & Video, Military & Aerospace, Mobile & Wireless

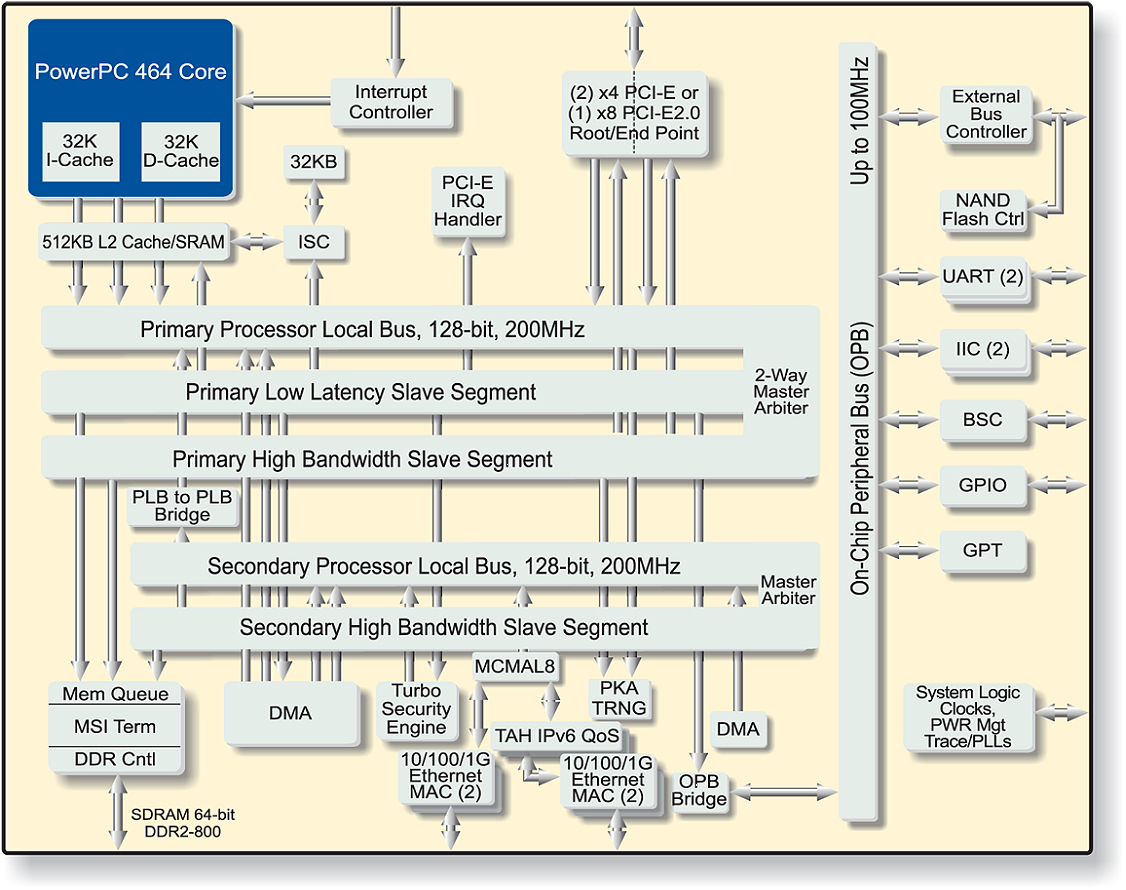

AppliedMicro PowerPC 460GTX Block Diagram 1

The PowerPC 460GTx, based on the Power Architecture, combines a performance optimized PowerPC core with a high-bandwidth memory and I/O subsystem to support networking and telecommunication applications. The high-performance CPU core is coupled with high-bandwidth memory and high-speed I/0 subsystems support for encryption/decryption, security, Gigabit Ethernet and Gen2 PCI Express. The PowerPC 460GTx provides a migration path for developers using AppliedMicro PowerPC 440GX and 460GT processors. The PowerPC 460GTx embedded processor features a PowerPC superscalar CPU core with clock frequencies ranging from 800MHz to 1.4GHz and performance of 2 DMIPS/MHz (2800DMIPS at 1.4GHz).

AppliedMicro PowerPC 460GTX Block Diagram 2
