LPC1102

Targets: Communication & Wired, Computers & Peripherals, Consumer, Digital Power, General Purpose, Industrial, Medical, Mobile & Wireless, Test & Measurement, Other

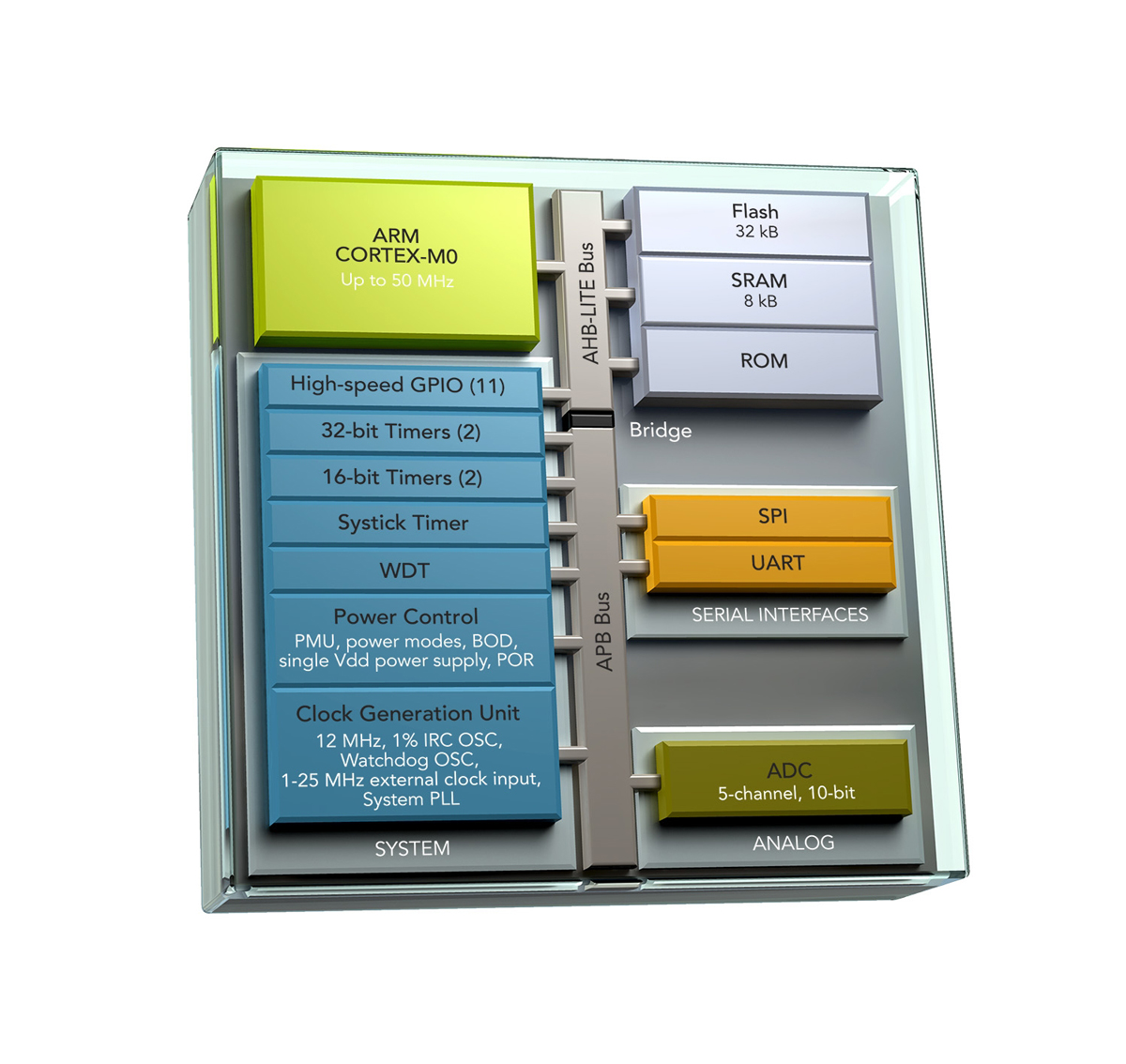

NXP LPC1102 Block Diagram

The LPC1102 provides computing power in a 5mm2 of PCB area. The LPC1102 targets applications requiring an ultra-miniature board footprint while delivering the same power and performance as the rest of the LPC1100 series. The LPC1102, with 32-kbytes of flash and 8-kbytes of RAM on-chip, is available in Wafer Level Chip Scale Packaging (WL-CSP) with dimensions of 2.17x2.32mm, a thickness of 0.65mm, and a pitch of 0.5mm. It includes a 5-channel 10-bit ADC, one UART, one SPI, two 32-bit and two 16-bit timers, and one 24-bit system timer.

SWD debugging and programming with four breakpoints and two watchpoints are provided. A total of eleven I/O functions double as general purpose input and output GPIO. Offering low power consumption with active mode current as low as 130μA/MHz, the LPC1102 features an internal IRC oscillator, accurate to ±1 percent over the industrial temperature and voltage range. It can also be clocked with an external source. These devices use the Cortex-M0 v6-M instruction set, which is built on a fundamental base of 16-bit Thumb instructions.
