QorIQ P1

Targets: Communication & Wired

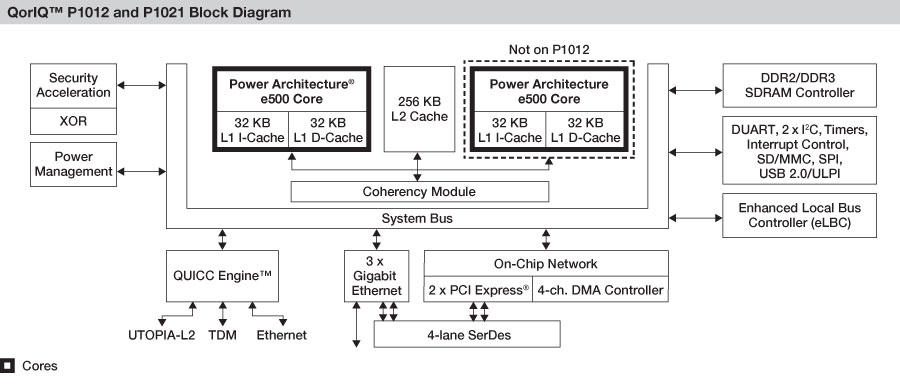

Freescale Semiconductor QorIQ P1 Block Diagram 1

The QorIQ P1 devices target multi-service gateways, Ethernet switch controllers, wireless LAN access points, and high-performance general-purpose control processor applications with tight thermal constraints. The products are suitable for combinations of data plane and control plane workloads for applications such as networking and telecom line cards, as well as supporting printing and storage applications.

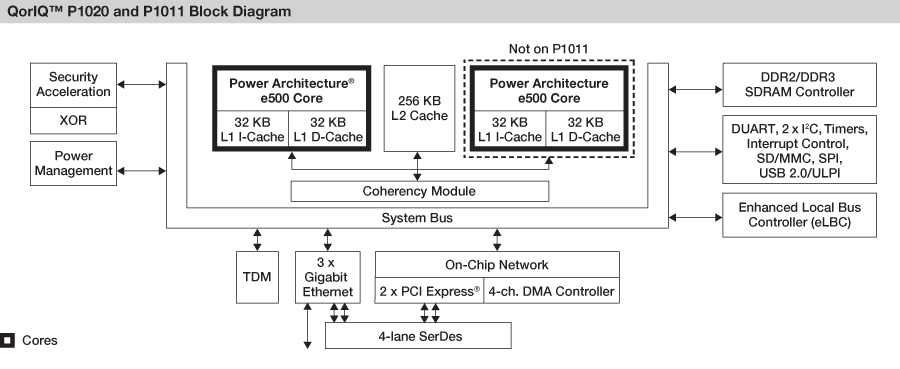

Freescale Semiconductor QorIQ P1 Block Diagram 2

The P1 family is built with low-power, dual (P1020) or single (P1011 and P1010) 800 MHz Power Architecture e500 cores and includes 256-kbyte L2 cache with error correcting codes (ECC). Providing a migration path from Freescale's PowerQUICC II Pro processor family, the P1 series offers a performance upgrade in the same power envelope, which enables fan-less design, as well as a migration path to dual-core if required for increased performance. The series provides solutions for the 400 MHz to 800 MHz per core performance range, along with advanced security and a rich set of interfaces.
